LYFT SLIM
If its elegant exterior were anything to go by, this Slim model would prove to be a hit – in the world of projector lifting systems – out there on the market. Packed with a host of vigorous mechanisms including, a duo-frame anti vibration system, this 40kg-enabled lifter comes in two series of extendable drop-down arms (of 1000m and 2000m) and unapologetically “hides” conveniently when concealed in ceilings. It goes to show, time and time again, that SMALL is the new big!
Download Installation Manual
SLIM

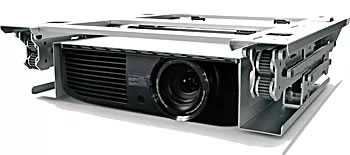

We have successfully redesigned the Lyft by sinking the projector within the system and expanding the frame to compact every single detail within the small box.
LY-S1
LY-S2
40kg Heavy Duty Rigidity
Our hoisting motor adopts a special patented cache that prevents sudden slip or displaced gears.
This further enhances the safety of the Lyft.

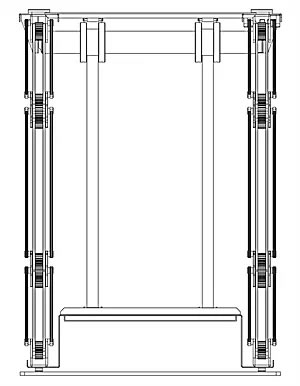

Interlocking Gears greatly improve the rigidity of the lift. Preventing unwanted vibrations and swaying.
Conventional scissors lift. Swaying will be obvious especially on high mounting.
Single roll mixed aluminium alloy. Improves hoisting rigidity to maximise laden weight.
Dual band harness made of strong nylon. This simple design shares the load of the system. It further divides it by half by adopting the pulley mechanism.
Controls
We have various plugins for controls.
Package: Wall module/Remote Controller Optional: RS-232/RS-485 Module/IP Module
Total Protection

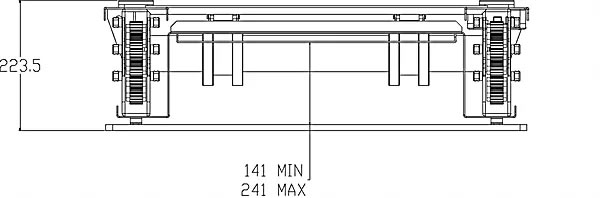

500 x 600 x 241mm
We cater to larger projectors to be housed within our cavity. This aluminium housing will keep wiring and your projector neatly and sturdily intact.

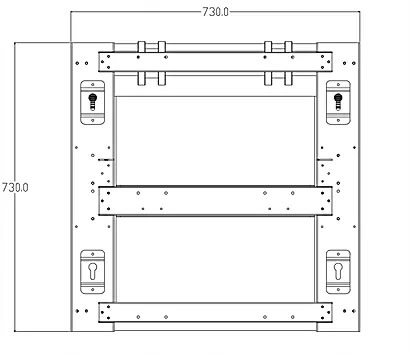

730 x 730 Base Plate
730 mm is the size you are required to breach through for your ceiling.
Dimension/Models

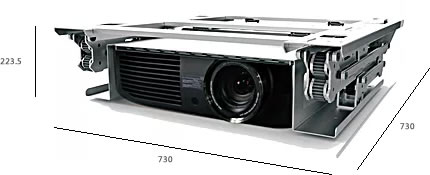

LY-S1
1000mm Vertical lift

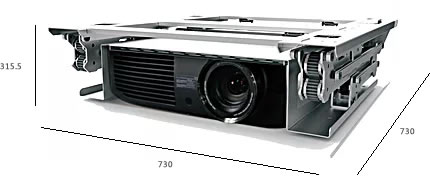

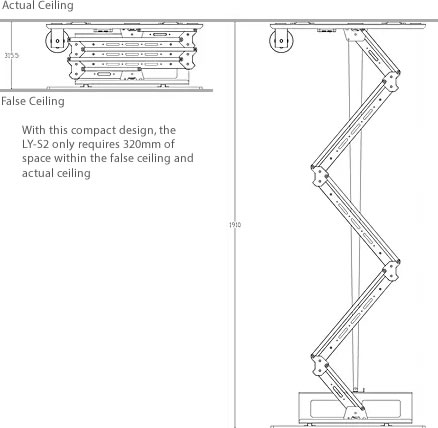

LY-S2
2000mm Vertical lift
