Surface Mount Acoustic Tensioned Screen(Picturesque)

The value of an “acoustic projector screen” is in its ability to present a high-quality projected image over in-wall speakers. The acoustic transparent projector screen allows sound to breathe through with minimal attenuation.

Default combination, Picturesque Acoustic comes with Acoustic Woven A projector screen. Other materials are available:Acoustic Perf HD130, Acoustic Perf HD Grey 70, Acoustic Woven A

Specification

Woven synthetic flame-retardant fabric –

Video Transparency – 3%

Video Transparency – 0.5% (Include BB layer)

Acoustic Transparency - -2.5db (10kHz - 20kHz)

Acoustic Transparency include BB layer – -2.5db (10kHz - 20kHz)

Ambient Light Resistance – 30%

0.95 gain

160° viewing angle

Enhanced dynamic range

Sizes up to maximum W3000mm

Features

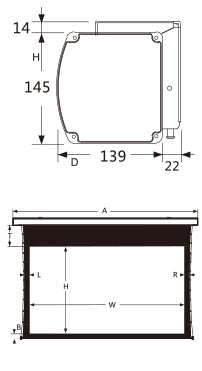

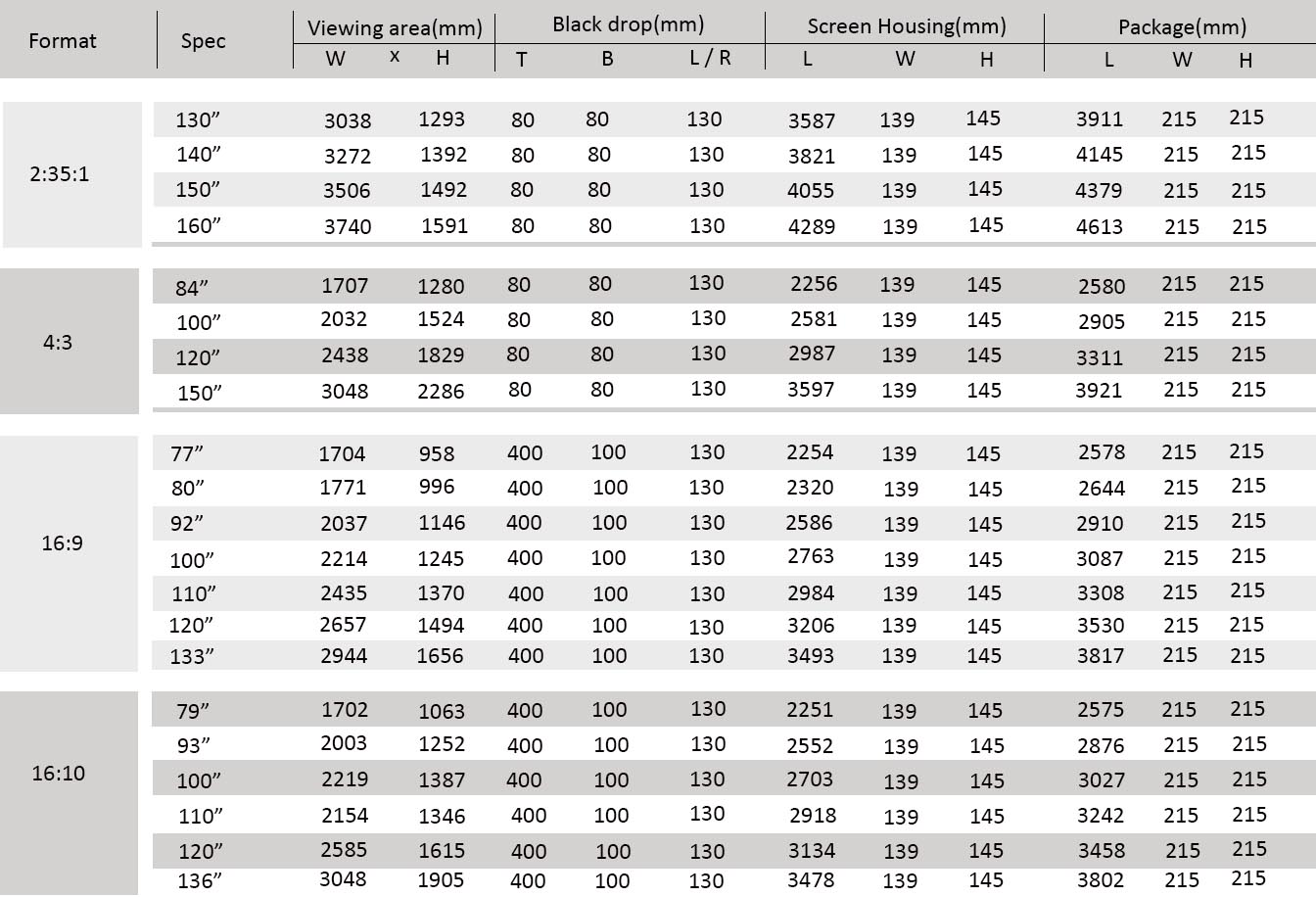

Screen Dimensions

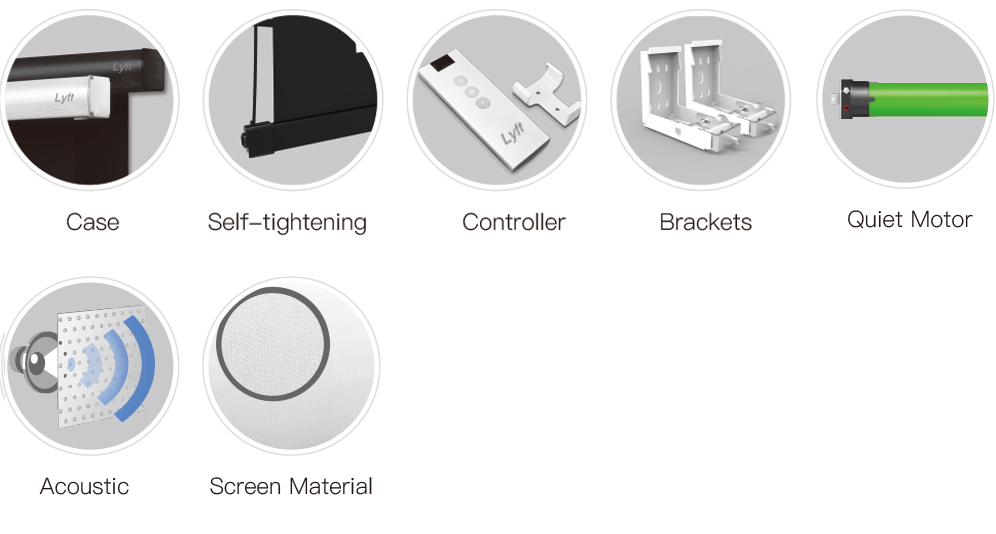

Detail

Screen Size Calculator

Screen Surface Material




Frame Type


Calculate Viewing Area Dimension

Enter the measurement that you know (diagonal, width or height) and the other two will be calculated.

inches
inches
inches
