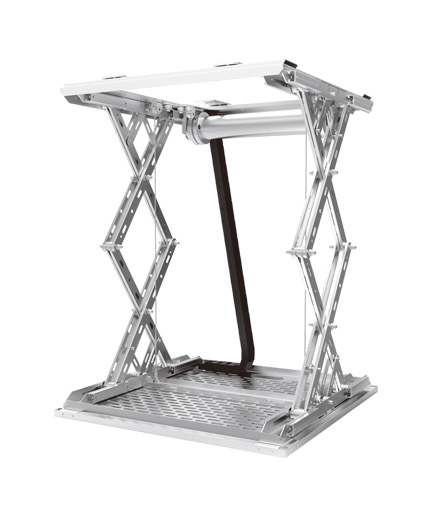

LYFT SLIM XS
It looks extremely light and modern thanks to the ultra-thin design, at only 178mm thick, Lyft Slim XS is thinner than most traditional scissor lift. Ingeniously crafted, the lift is designed with a wired cable chain that allows you to tuck the cables neatly, pleasant to the eye.
Dual frame anti-vibration system combines with anti-pull joint design perfectly ensure all angle stability for the projector. Built-in adjustability provides for quick and easy response to job-site conditions. With a maximum extension length of 750mm and a weight threshold of up to 20kg, Lyft Slim XS is suitable for small, medium projectors. Patent No.: CN20713702U.
- Extension length range: 180-750mm.
– Ceiling opening size: 580*580mm.
– Space within false and actual ceiling: The projector is upside down (projector thickness + 170mm).
– Suitable for the maximum size of the projector.
– Upright position: 400 * 400mm.
– Upside down position: ≤ 530 * 470mm / 470 * 530mm.
– Maximum lifting capacity: ≤20KG.
– Power: Direct 240V.
SLIM XS
It looks extremely light and modern thanks to the ultra-thin design, at only 178mm thick, Lyft Slim XS is thinner than most traditional scissor lift.

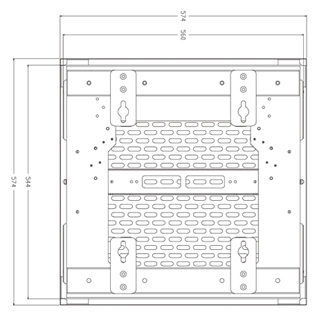

Base Plate

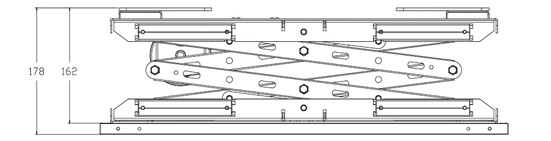

Mount Height

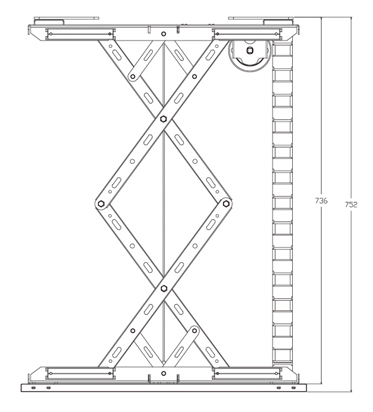

Extended Operation

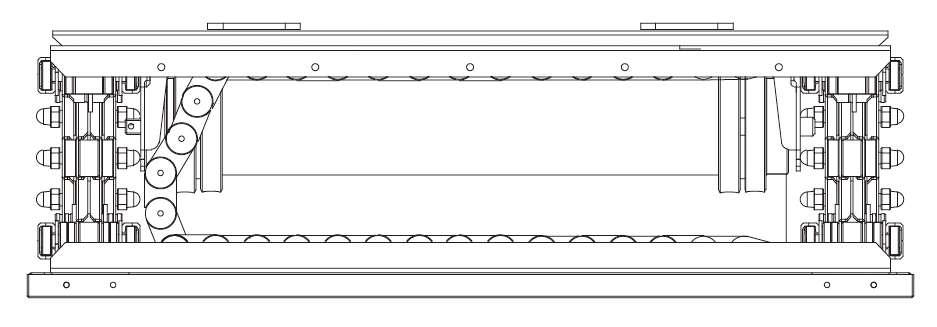

Cable Chain Mounted

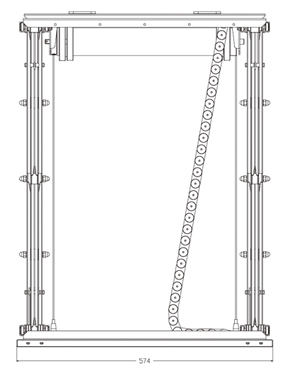

Cable Chain Expanded
20kg Heavy Duty Rigidity
Our hoisting motor adopts a special patented cache that prevents sudden slip or displaced gears.
This further enhances the safety of the Lyft.
Interlocking Gears greatly improve the rigidity of the lift. Preventing unwanted vibrations and swaying.
Unlike traditional scissor lift design, Lyft Slim XS successfully integrated the anti-pull joint design to enhance the safety mechanism and ensure accurate positioning.
Wire Management
Chain wire management keeps wire neat and tidy
Single roll mixed aluminium alloy. Improves hoisting rigidity to maximise laden weight.
Dual band harness made of strong nylon. This simple design shares the load of the system. It further divides it by half by adopting the pulley mechanism.
Controls
Package: Wall module/Remote Controller Optional: RS-232/RS-485 Module/IP Module
Option to fix with encasement
Suitable for the maximum size of the projector:
Upright position: 400 * 400mm
Upside down position: ≤ 530 * 470mm / 470 * 530mm.
560*560*178mm Base Mounting
560 mm is the size you are required to breach through for your ceiling.
Dimension/Models
With a maximum extension length of 750mm
Mount Height Required: 168mm
Without base plate: 544*544*168mm.
With base plate: 560*560*178mm.
